Manufacture 12 ton mini crawler crane 5.5-21m telescopic boom spider crane 10 ton mobile other cranes-122075
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
$9,450.00
/pc
Refund:
Share:
Top Selling Products
Product Show

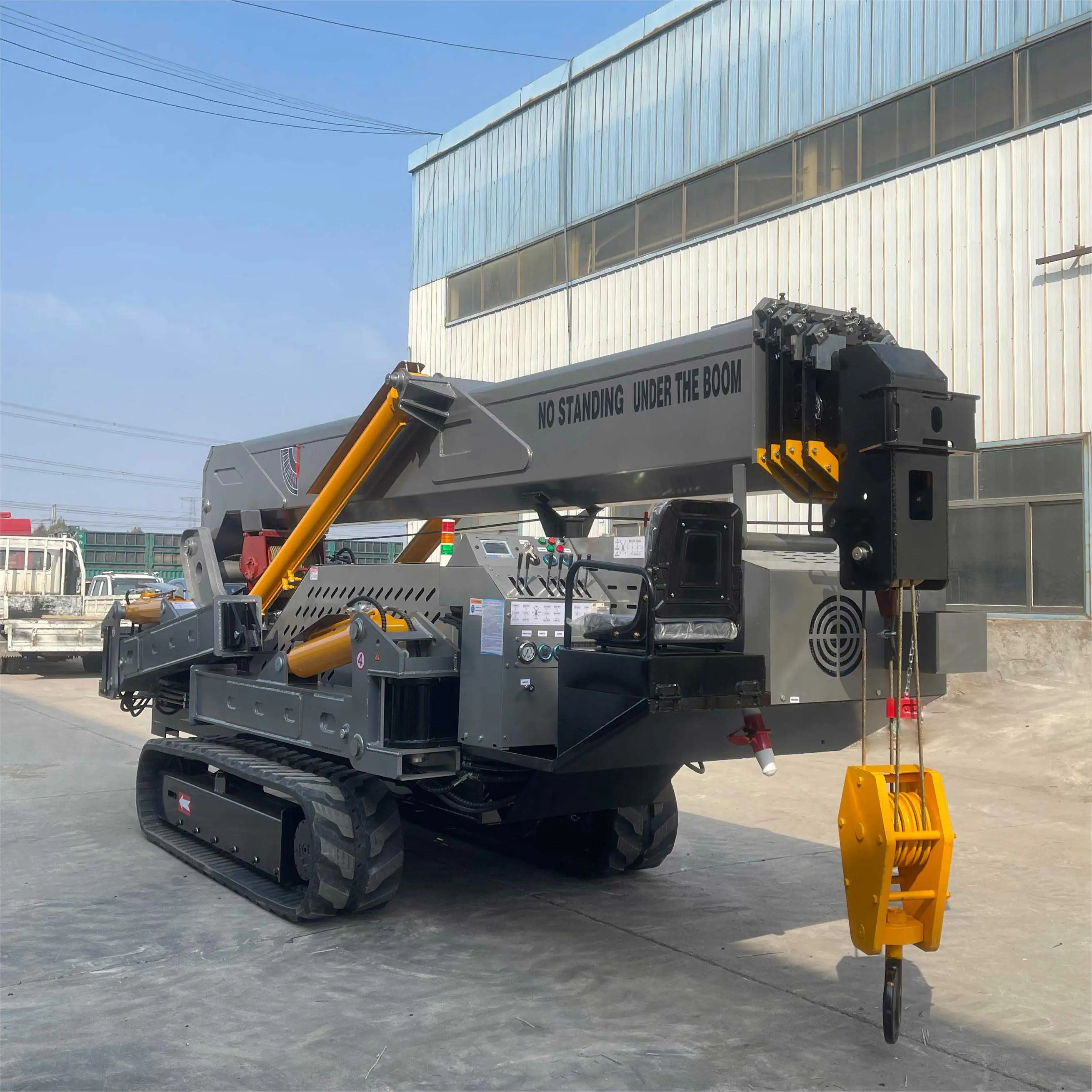

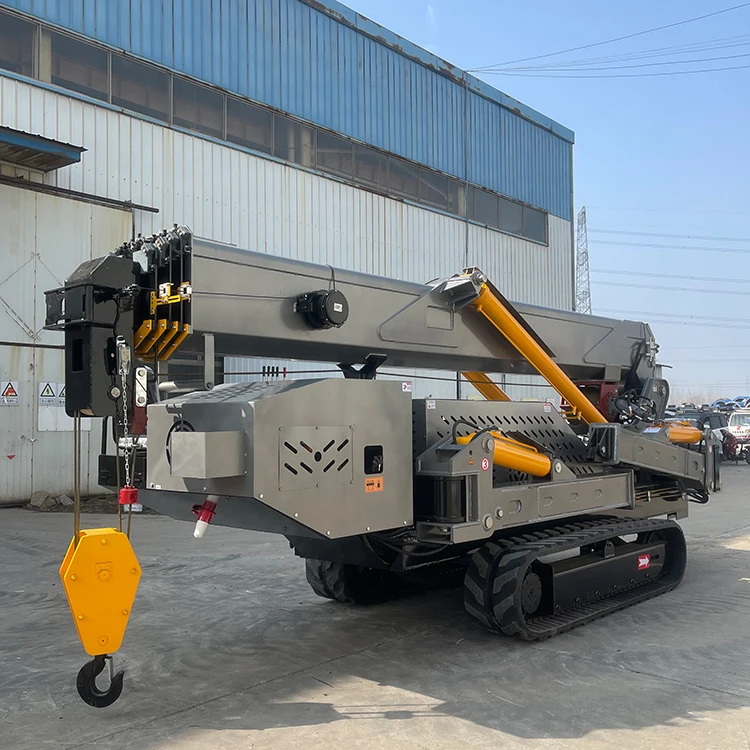

CRAWLER CRANE/ SPIDER CRANE TSC1200
Max lift capacity: 12000 KGMax working radius:21m * 1ton
Size: 6050mm*1850mm*2300mm

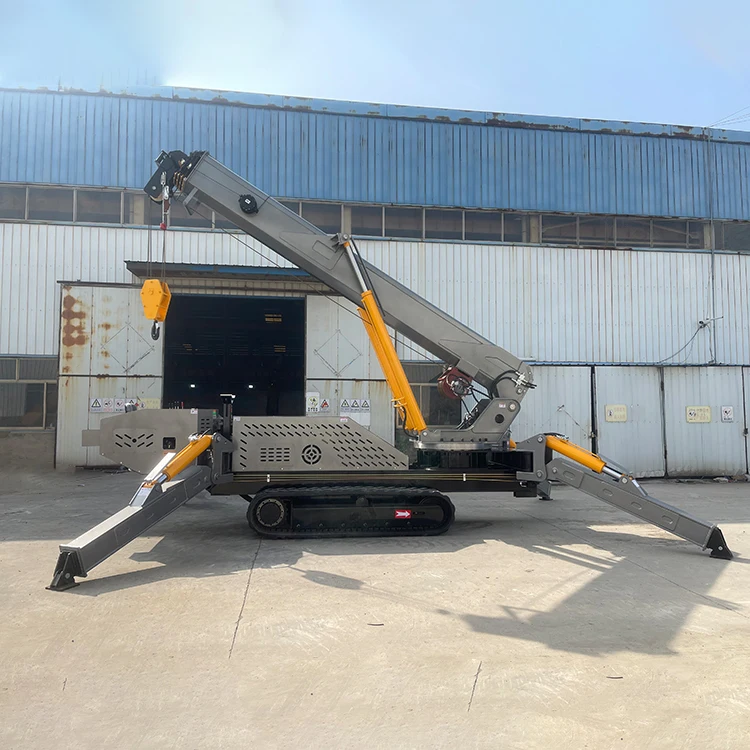

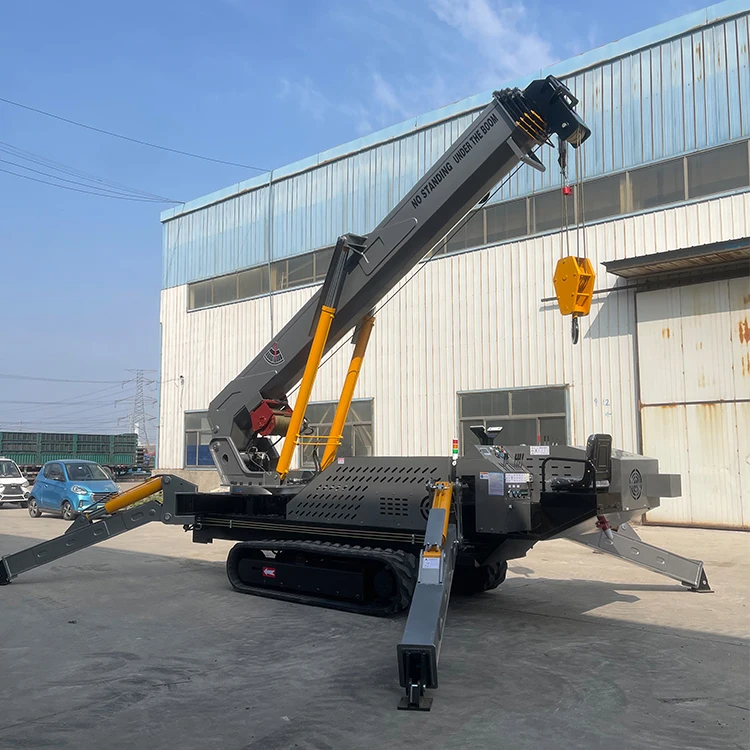

Hydraulic outriggers take up less space when working, and the outriggers can also be adjusted .
Crawler chassis, more stable, suitable for difficult and complex working environment.
Product Paramenters
12-ton Crawler Crane | ||
Dual Power | Diesel engine and electric motor | |
Max working radius | 21m * 1ton | |
Max Ground Lifting Height | 22m | |
Hook lifting speed | 0-12m/min (high speed 12m/min, low speed 6.5m/min) | |
Telescopic Wire rope | Φ12mm* 100m | |
Telescopic Boom type | Hexagonal fully automatic 5-section | |
Telescopic Boom length | 5.5m-21m | |
Telescopic Boom length/time | 50sec (fully extended) | |
Undulating Boom angle/time | 0~78°/ 60sec | |
Gyratory angle/time | 0-360°（continuous）120sec | |
Outrigger Operating type | Manual unscrewing + hydraulic expansion | |
Outrigger Max extended dimensions | Left/Right 7400mm Front 7000mm Back 6000mm | |
Traveling type | Hydraulic motor driven | |
Traveling speed | low speed 0-0.8km/h high speed 0-2km/h | |
Gradeability | 20° | |
Track size | 2570mm*400mm | |
Engine Brand | YuChai 78KW/ Yanmar | |
Engine Starting method | Electric | |
Fuel | Diesel | |
Fuel tank capacity | 50L | |
Electric Motor model | YE2-180-6 (Three-Phase AC Asynchronous Motor) | |
Motor Voltage | AC380V(50Hz) customizable | |
Motor Power/Speed | 15KW/ 970 rpm/min | |
vehicle size | 6050mm*1850mm*2300mm | |
vehicle weight | 11500kg | |
Hydraulic Oil Tank Capacity | 130L | |

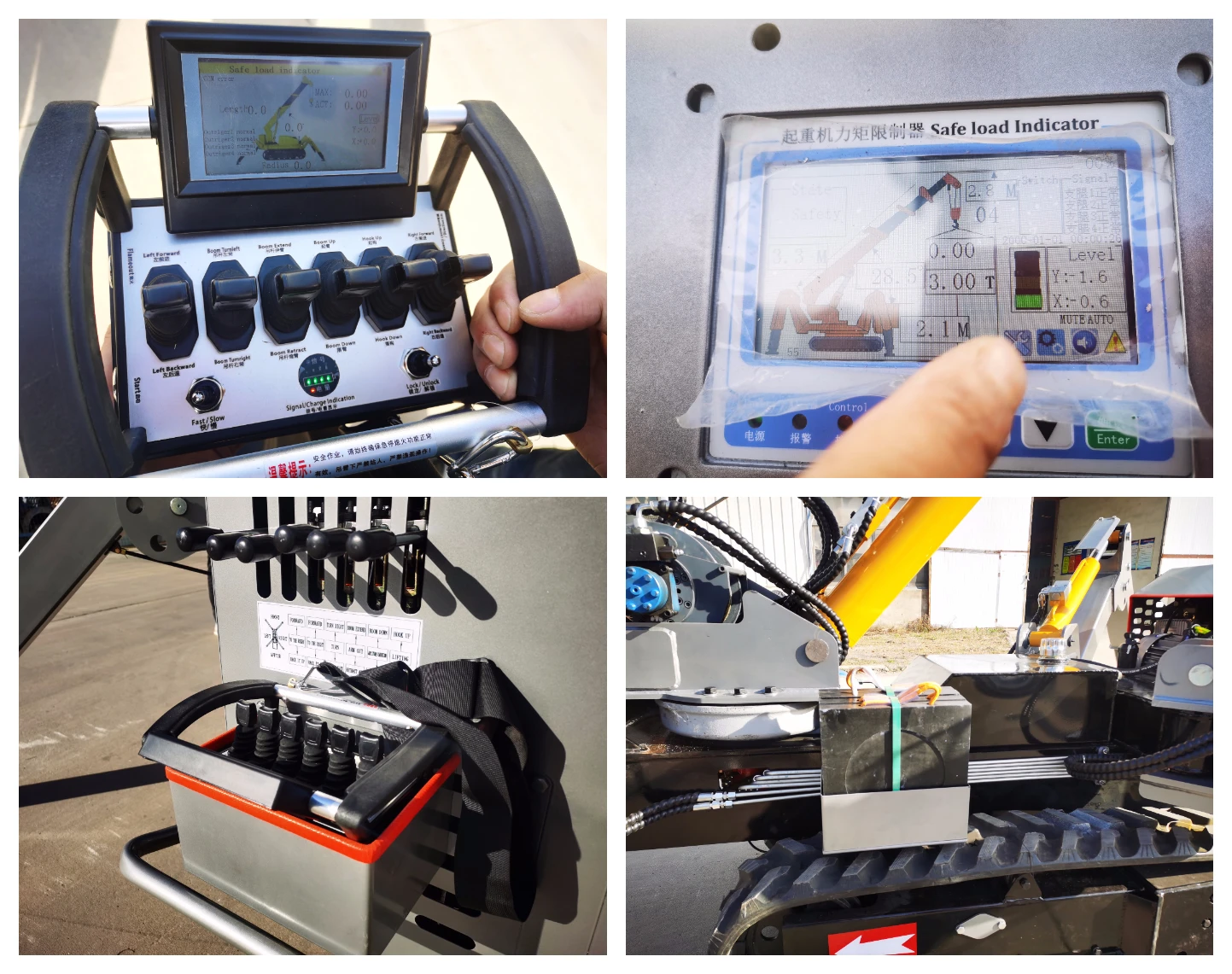

Safety Devices optional | Remote Control System Safe Load Moment Indicator Anti-Tipping Device One-Click Leveling etc. | |
Product Details
Construction sites, railway hubs, industrial and mining enterprises, from large iron and steel complexes to busy ports, there are spider cranes everywhere to undertake the tasks of material handling and equipment installation.
Our Company
Are you a manufacturer or Trader?
We are a professional manufacturer, we have our own R&D team and sales team, and we provide a one-stop service.
What is your payment term?
We accept T/T, L/C at sight, etc.
How long is the validity of the quotation?
Generally, our price is valid within 15 days from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in the market.
What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 20-30 days, It depends on the order quantity.
Do you provide OEM/ODM Service?
Yes, offer us the necessary information, we provide custom-made services to meet the different needs of global clients with different budgets.
Do you have a CE certificate?
Yes, most of our products have the CE certificate
How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing it?
We will provide a professional installation video to illustrate. Also, provide it manually.
Do you offer a guarantee?
Yes, we guarantee our product for one year. Provide after-sales service support and agricultural technical support.
