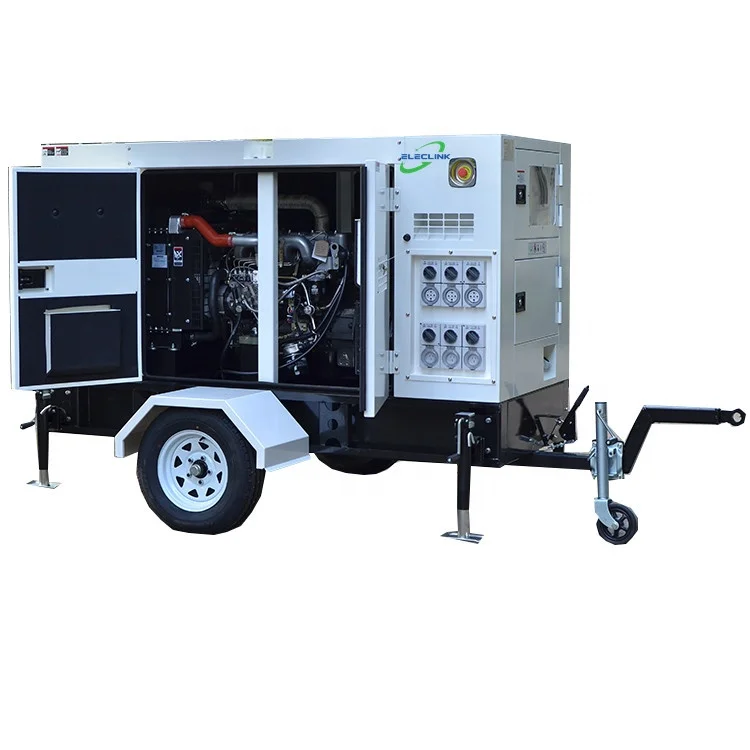

125kva 100kw Mobile Trailer Silent Diesel Generator With Chinese Engine SDEC SC4H180D2 Primary Use 555010

(0 reviews)

Sold by:
Inhouse product

Price:

$5,500.00 /pc

Quantity:

(1000 available)

Refund:

Top Selling Products

Description reviews

Super Silent Type 62kva 50KW 55KW Chinese Good Quality SDEC Engine SC4H95D2 With Brushless Alternator Price

Specification

Model	Voltage	HZ	P.F （COS￠）	Standby power	Prime power
ELC-S50GF	110、230、400V	50/60Hz	0.8	68kva/55kw	50KW/62KVA

Engine Model	SC4H95D2
Number of Cylinders	4cylinders
Cycle	4 stroke
Aspiration	Turbocharged and after water cooled
Bore×Stroke	105mm x124mm
Displacement	4.3L
Fuel Consumption at 100% Load	207g/kw.h
Starter Motor	DC24V,
Alternator	Stamford/Marathon/Leroysomer/Eleclink
Prime power	62KVA
Frequency/speed	50/60Hz
Exciter type	Brushless
Power factor	0.8
Voltage adjust range	≥±5%
Voltage regulation NL-FL	±0.5%
Insulation Grade	H
Protection Grade	IP23
Phase	Three phases

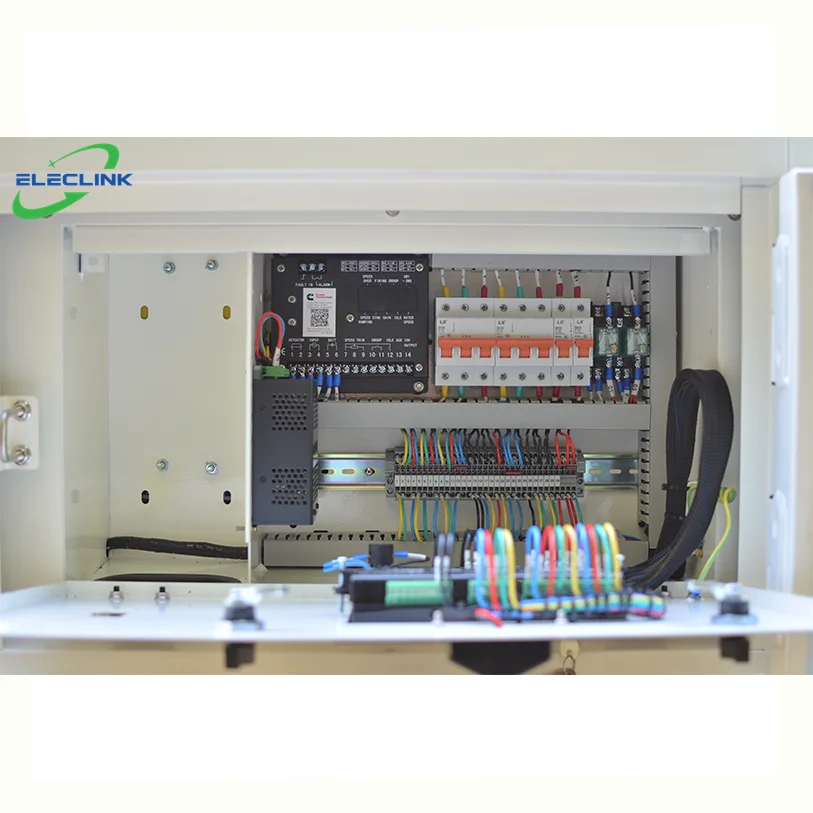

Smartgen control panel data
Controller Brand	Deepsea /ComAp /Smartgen
Controller Display	Output frequency Engine speed Battery voltage Engine run-time (Hours) Note: 1. The engine coolant temperature displayed by water temperature gauge 2. The engine oil pressure displayed by oil pressure meter 3. Generator current displayed by current meter, to change switch for each phase displayed separately

Generator Set	Fuel System	Control system	Alternator	Low environment temperature
Open generator set	8h/12h/24hours fuel tank	AMF function	PMG excitation	Water heater
Super Silent Type	Dual wall base fuel tank	ATS	Space heater	Oil heater
Trailer Type	Outside fuel tank	Multiple generator automatic synchrorising		Battery heater
